House Retaining Walls: Options, Costs & More

A retaining wall is a structure that holds back soil where the ground level changes, whether from a natural slope, cut-and-fill during construction, or a height difference along a boundary. Most homes on sloping blocks need at least one, and they protect your house, your neighbours' property, and your garden from soil movement and water damage.

If the wall sits tight against your home rather than sitting apart from it, it's often what's called an integrated retaining wall, which we'll get into shortly.

On this page:

• Glossary of retaining wall terms

• Do I need a retaining wall?

• Types of retaining walls used around houses

• What is an integrated retaining wall?

• Integrated vs standard retaining walls: which fits your block?

• Building close to the house: access and staging

• Do I need council approval for a retaining wall?

• How retaining walls fail (and what good drainage looks like)

• Boundary retaining walls: avoiding disputes

• What affects retaining wall costs?

• FAQs

Terms you may need to know:

• Hydrostatic pressure: The pressure created when water builds up behind a retaining wall, which is a leading cause of wall failure if drainage isn't adequate

• Backfill: The material placed behind a retaining wall once it's built, ideally free-draining aggregate rather than compacted clay

• Geogrid: A reinforcing mesh material used in reinforced soil retaining walls to strengthen the soil mass behind the wall face

• Surcharge loading: Extra weight placed above or near a retaining wall, such as a driveway, pool or vehicle, which adds to the pressure the wall needs to resist

• Zone of influence: The area behind a retaining wall where loads (like a nearby structure or driveway) can affect the wall's design requirements

• Weep holes/ag pipe: Drainage points built into a retaining wall to let water escape rather than build up behind the wall face

Key takeaways:

• Most homes on sloping blocks, cut and fill sites, or with a boundary height change will need at least one retaining wall

• An integrated retaining wall sits tight against your home rather than standing apart from it, and preserves side access for future work

• Walls over 600mm typically trigger council involvement in NSW, though the exact threshold depends on height, boundary proximity and your council's controls

• Poor drainage is the most common cause of retaining wall failure, not poor materials

• Planning your retaining wall strategy before the slab goes down is far cheaper than retrofitting one after handover

If you're not sure whether your block needs a retaining wall, run through this checklist. If any of these sound familiar, it's worth getting advice early:

• Your block has a visible slope, even a gentle one

• You've noticed soil creep or small landslips in garden beds

• You're planning to terrace your yard for lawn or garden space

• You're building a new home on a sloping block

• A pool is being cut into a slope or an elevated section of the yard

• There's a noticeable height difference between your block and your neighbour's

• Water pools or runs toward the house after rain

• You're planning a driveway or path that cuts across a level change

• An existing wall looks like it's leaning, bulging or cracking

• Your council's planning certificate mentions a slope or landslip risk for your property

When to get advice: if you're dealing with a slope over roughly one metre, an existing wall showing signs of movement, or a boundary where your neighbour's yard sits higher or lower than yours, talk to a structural engineer or your builder before finalising your design. Early advice is far cheaper than a retrofit.

There's no single "best" retaining wall. The right choice depends on your block, your budget and how the wall needs to perform. Here's how the common options compare.

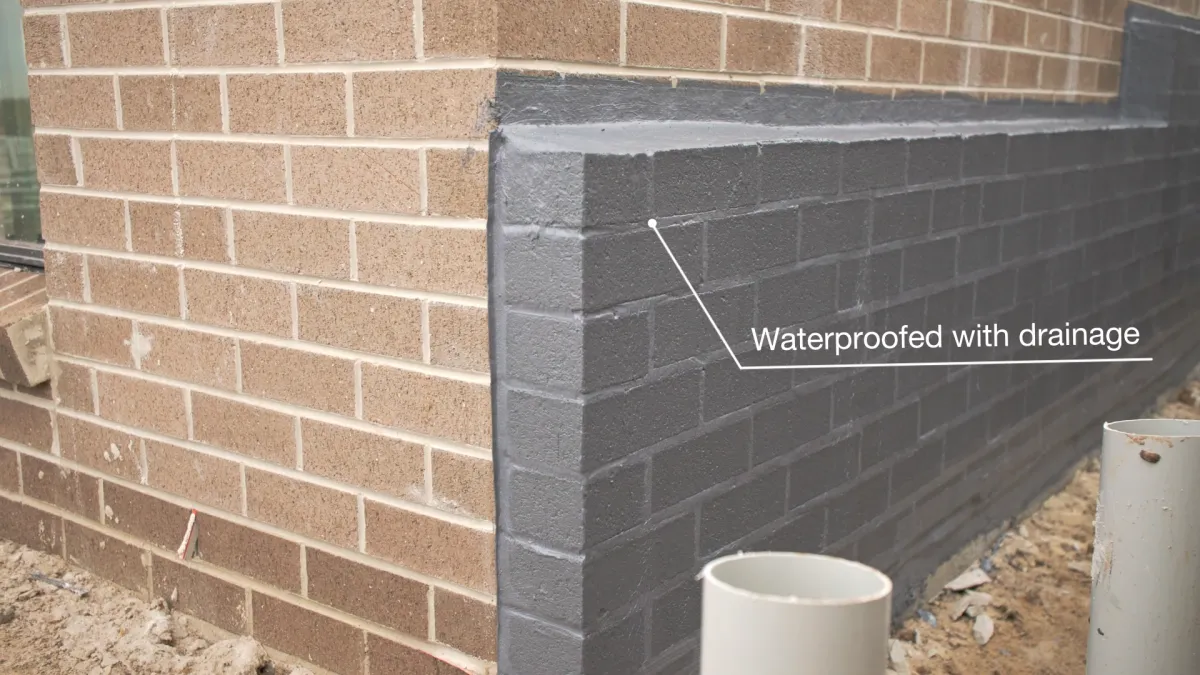

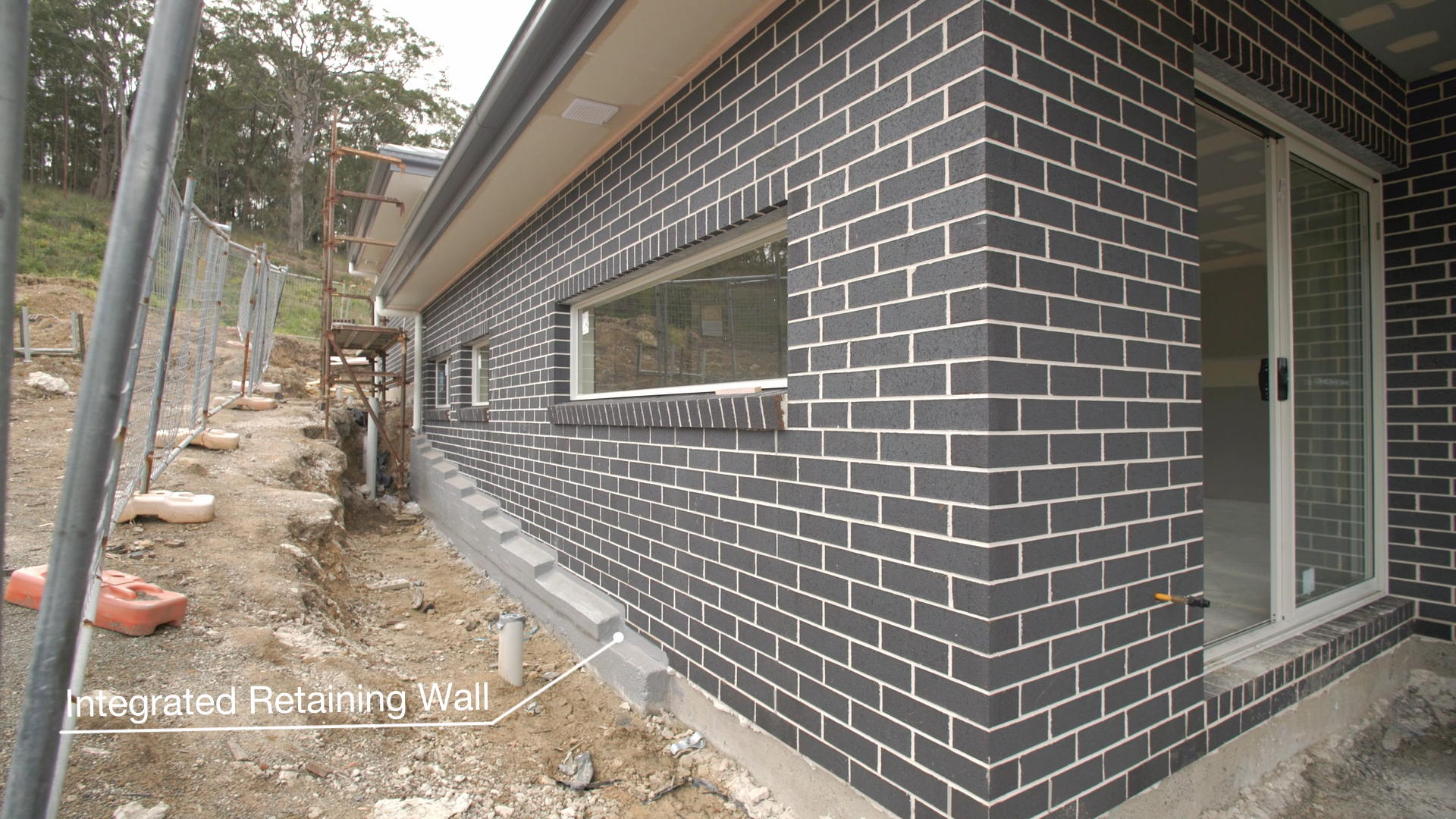

Where a standard retaining wall sits away from your home as its own structure, an integrated retaining wall is built tight against the external wall of the house, effectively becoming part of it.

Made from concrete brick or block, it's designed to be waterproof, properly drained and backfilled correctly, so it protects the house rather than putting pressure on it.

• A waterproofing membrane is applied directly to the external face of the wall

• An agricultural drainage pipe running along the base to carry water away

• Free-draining aggregate backfill that stops water from building up against the wall

• Inspection access points so the wall's condition can be checked over time

• A design life that matches the home itself, since it's built as part of the structure

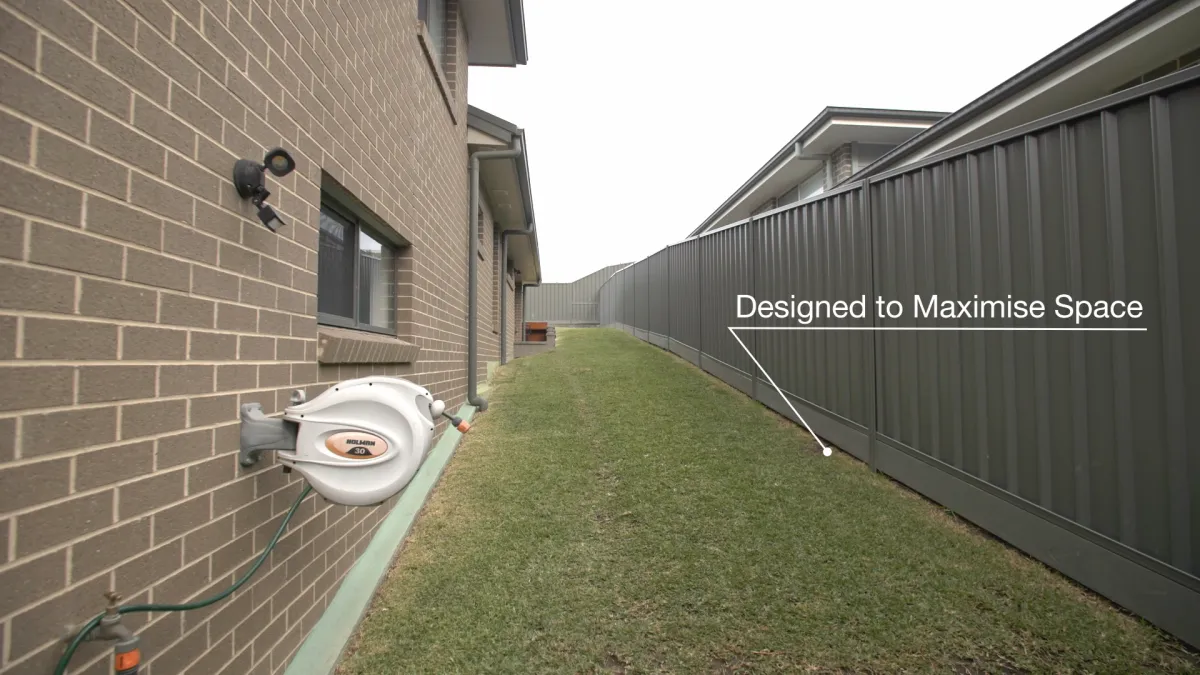

Because an integrated retaining wall sits flush against the house, you also keep a wider, more usable path down the side of your home. That matters if you ever need to bring materials or machinery into the backyard for future landscaping or repairs. Standard isolated walls often leave as little as 600mm of side access, which makes future work in the backyard slow and expensive.

Because integrated retaining walls sit so tightly against the external wall, you will also have a larger, more natural pathway along the side of your house. If more retaining walls are needed in the future (or you decide you want to revamp your backyard), this paves the way for engineers and builders to ferry materials around the side of the house.

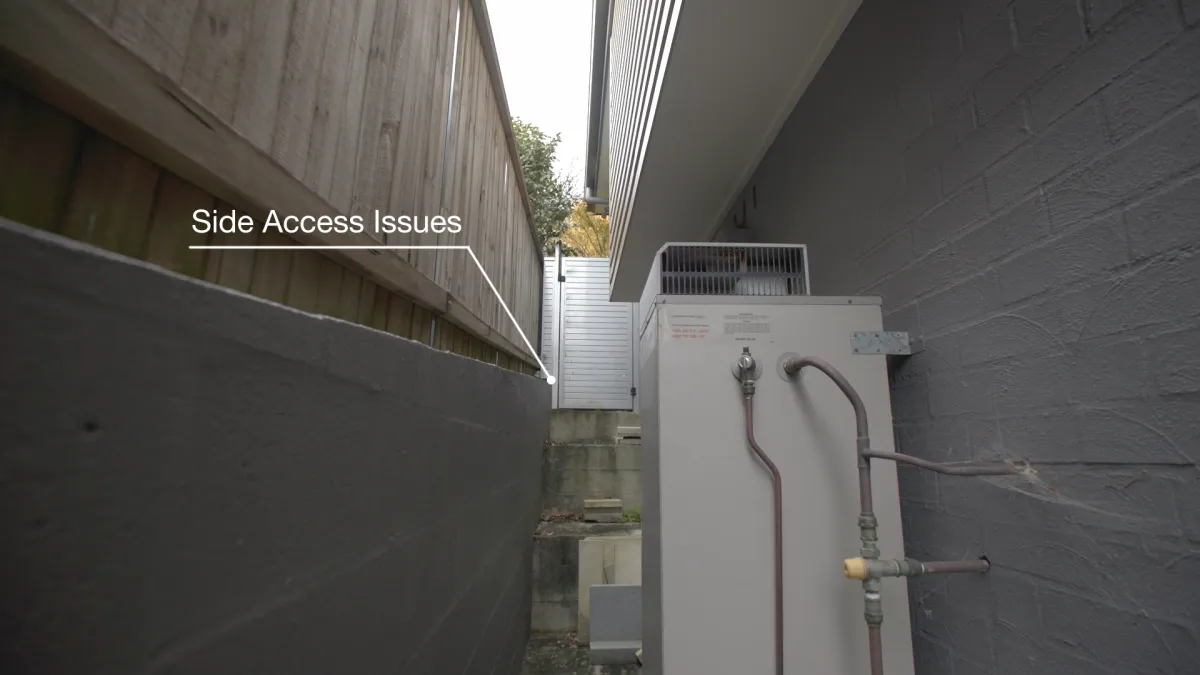

This is often a problem with standard retaining walls — see the image above. The builders may only have 600mm of space to move around and will struggle to get materials and machinery into your backyard.

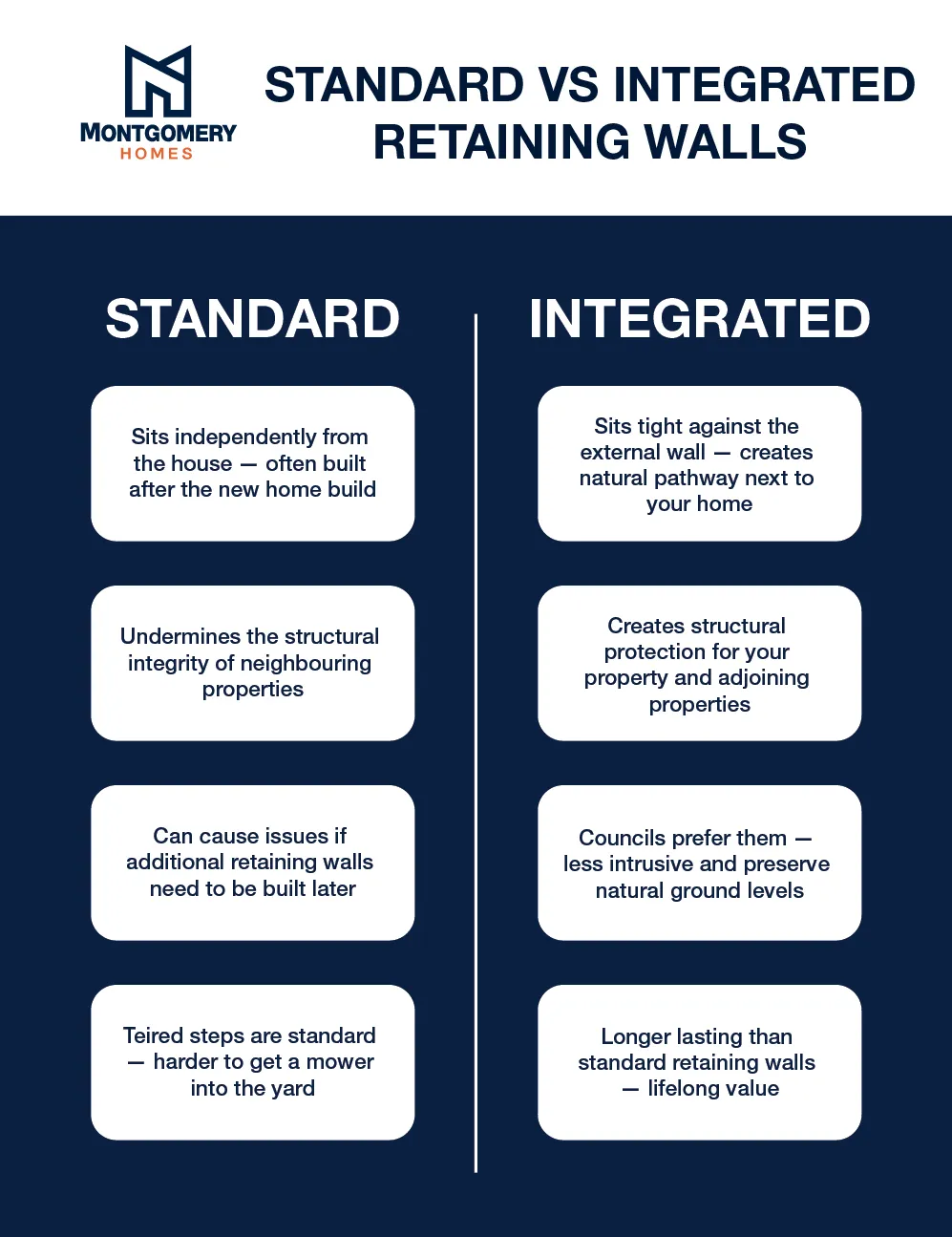

Not every block needs an integrated wall, and not every retaining wall problem has the same solution. Use this table as a starting point, then confirm with your builder or engineer.

When it comes to comparing standard isolated walls and integrated walls for a home build, councils also tend to favour the integrated approach. Because it preserves natural ground levels and sits within the home's structure, it's generally easier to secure approval than an isolated wall built separately.

If a retaining wall needs to sit close to your home's footprint, timing matters. Once a slab is down and the house frame is up, working in a tight side setback becomes far harder, and materials often have to be carried in by hand rather than by machine.

This is why integrated retaining walls work best when they're planned at the design stage, before the slab is poured. A typical build sequence looks like this:

1. Site assessment and slope survey, before the home design is confirmed

2. Retaining wall design integrated into the house plans, not added afterwards

3. Site cut and preparation, with the retaining wall built as part of the footing and slab stage

4. House construction proceeds with the wall already in place, avoiding later access issues

5. Final backfill, drainage checks and landscaping once the build is complete

Planning this way avoids one of the most common (and expensive) retaining wall mistakes: adding a wall after handover, when access is limited, and machinery may not fit down the side of the house at all.

Retaining wall approval requirements vary by council, but there are some general rules of thumb worth knowing before you start planning.

Rules of thumb (always confirm with your council):

• Walls under roughly 600mm often fall under exempt development, provided they're not near a boundary or affecting drainage

• Walls at or above 1 metre from the building, without extra surcharge loading (like a driveway or pool above the wall), can sometimes avoid a full Development Application, but this varies significantly by council

• Walls built on or near a boundary generally need approval, regardless of height

• Retaining walls over 800mm typically fall under the Australian Standard AS 4678 for earth-retaining structures, and walls directly related to a house need to be designed for at least a 60-year design life under that standard

Because these thresholds vary between councils and depend on your specific site, always check your local council's Development Control Plan or speak with a certifier before finalising your retaining wall design.

For general guidance, the NSW Planning Portal's exempt development provisions and your local council's planning pages are good starting points.

Most retaining wall failures stem from a small number of common causes, and they're almost all preventable with good design.

Three failure modes:

• Poor drainage. Water building up behind a wall creates hydrostatic pressure, which pushes against the wall far harder than dry soil alone

• Inadequate footings or foundations. A wall that isn't founded deep enough or wide enough for the soil conditions can shift or lean over time

• Surcharge loads. Extra weight above the wall, like a driveway, pool or parked car, adds pressure that the original design may not have accounted for

What good drainage looks like:

• An agricultural drainage pipe running along the base of the wall, wrapped in a sock to prevent silt blockage

• Free-draining aggregate backfill immediately behind the wall face

• Outlets that carry collected water to daylight or into the stormwater system, not just into the ground nearby

• Surface falls that direct runoff away from the wall rather than pooling against it

Retaining walls that sit on or near a property boundary raise a few extra considerations beyond a standard wall. Common issues include:

• Encroachment, where a wall or its footings extend onto a neighbouring property

• Footing depth and width, which can affect what your neighbour can build near the boundary in future

• Maintenance access, since some walls need to be inspected or repaired from both sides

Because these issues can affect both properties, it's worth having the boundary surveyed before construction and putting a written agreement in place with your neighbour, particularly for shared or jointly-funded walls.

This is general guidance rather than legal advice, so for anything boundary-specific, check with your local council or a property lawyer, and refer to your state's dividing fences and boundary legislation for the formal process.

Retaining wall costs vary widely depending on your specific project, so it's worth understanding the variables rather than relying on a single figure. The main cost drivers are:

• Wall height and total length

• Soil type and site conditions, including how much rock excavation is needed

• Site access for materials and machinery

• Drainage requirements, including ag pipe and stormwater connections

• Whether an engineering certification is required

• Finish and material choice, from timber through to masonry or feature block

• Removal of an existing wall, if you're replacing one that's failed

Because these factors compound quickly, it's worth getting two to three itemised quotes for any retaining wall project over a modest size, so you can compare like-for-like rather than a single headline number.

Do I need council approval for a retaining wall? It depends on the wall's height, its distance from boundaries, and whether it supports any additional load. Many smaller walls are exempt developments, but taller walls or those near a boundary generally require a Development Application or a Complying Development Certificate.

What height retaining wall needs engineering? As a general rule of thumb, walls over 600mm to 1 metre typically need some form of engineering input in NSW, and the Australian Standard AS 4678 applies to walls over 800mm. Always confirm the exact threshold with your council or certifier.

How long do timber retaining walls last? Treated timber sleepers typically last around 15 to 25 years, depending on the timber treatment and site drainage conditions. Concrete, masonry and integrated walls generally have a much longer design life.

Can a retaining wall be built against my house? Yes, this is exactly what an integrated retaining wall is designed for. It's built tight against the external wall as part of the home's structure, rather than as a separate wall standing apart from the house.

What is an integrated retaining wall? An integrated retaining wall sits directly against the home's external wall, is waterproofed and properly drained, and is built as part of the house rather than as an isolated structure. It preserves side access and is designed to have the same lifespan as the home itself.

How do I manage drainage for a retaining wall? Good drainage relies on an agricultural pipe at the base of the wall, free-draining backfill, and an outlet that carries water to daylight or into stormwater. Without this, hydrostatic pressure can build up behind the wall over time.

What's the difference between an integrated and a standard retaining wall? A standard retaining wall stands apart from the house, while an integrated wall sits tight against it. Integrated walls generally preserve more usable side access and can streamline council approval, but they must be planned before construction begins.

Do I need a retaining wall on a sloping block? Most sloping blocks need at least one retaining wall to manage cut and fill, protect the home's foundations, and stop soil movement toward neighbouring properties. The exact number and type depend on your specific site.

Retaining walls are one of the first things we plan for on a sloping block, not an afterthought. As New South Wales' sloping site specialists, we factor your site's slope, access and drainage into the design from day one, which is exactly where an integrated retaining wall solution tends to make the most sense.

Talk to our team about how your block's slope affects your retaining wall options, and we'll walk you through the right approach for your build, whether that's an integrated wall, a standard retaining wall, or a combination of both.
